Everyone has an opinion on the Harley-Davidson Street 750, but that hasn’t stopped it from being a big seller for the American marque. And most customizers who have spun spanners on the Street will say one thing: lurking under all the nitpicks is a pretty decent motorcycle.
Which is why Colin Cornberg of Number 8 Wire Motorcycles wisely recommended the Street 750 to his client as a donor for this project—even though it wasn’t part of the original brief. And how the project came to life is a pretty interesting story too…
“A few years back, I built a 1981 Kawasaki KZ750 parallel twin for a gent in Montana,” Colin tells us. “But his new wife wouldn’t let him ride it, so he put it on eBay. My new client—from Houston, Texas— bought that KZ, and fell in love with it. Then he asked me to build him his ‘own’ custom.”
“He initially wanted a CB750 or similar. But I worked on those bikes for years in my former service garage in Missoula, so I talked him into something with a little more reliability and performance. He was understandably very skeptical of the Harley-Davidson Street 750 to begin with, but after seeing a couple of sketches he was on board with the idea.”
Originally from New Zealand, Colin now lives in the US, near the small town of Philipsburg in Montana. “It’s a town of about 800 people,” he says. “It’s the middle of nowhere.”
“I’ve been building bikes and fabricating out of my 16′ x 20′ garage for the past year, and before that had a small shop in Missoula, about an hour away. The dirt bike riding out here is insane, the skiing is great in winter and the small town vibe is on point.”
There were two major requirements for the Street 750: it needed to be thoroughly rideable, and it needed to have a little cafe racer flavor—in the broadest sense of the term. So Colin knew that the 2015-spec Harley would need all-new bodywork, and a few performance upgrades.

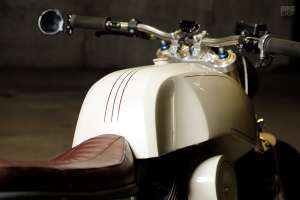

Working with aluminum, and using hammers, dollies, an English wheel and a shrinker stretcher, Colin shaped up the Street’s new clothes. “I made two-and-a half-gas tanks before getting it right,” he says. “The learning throughout that process was invaluable—the biggest challenge was retaining the monstrous stock fuel pump.”

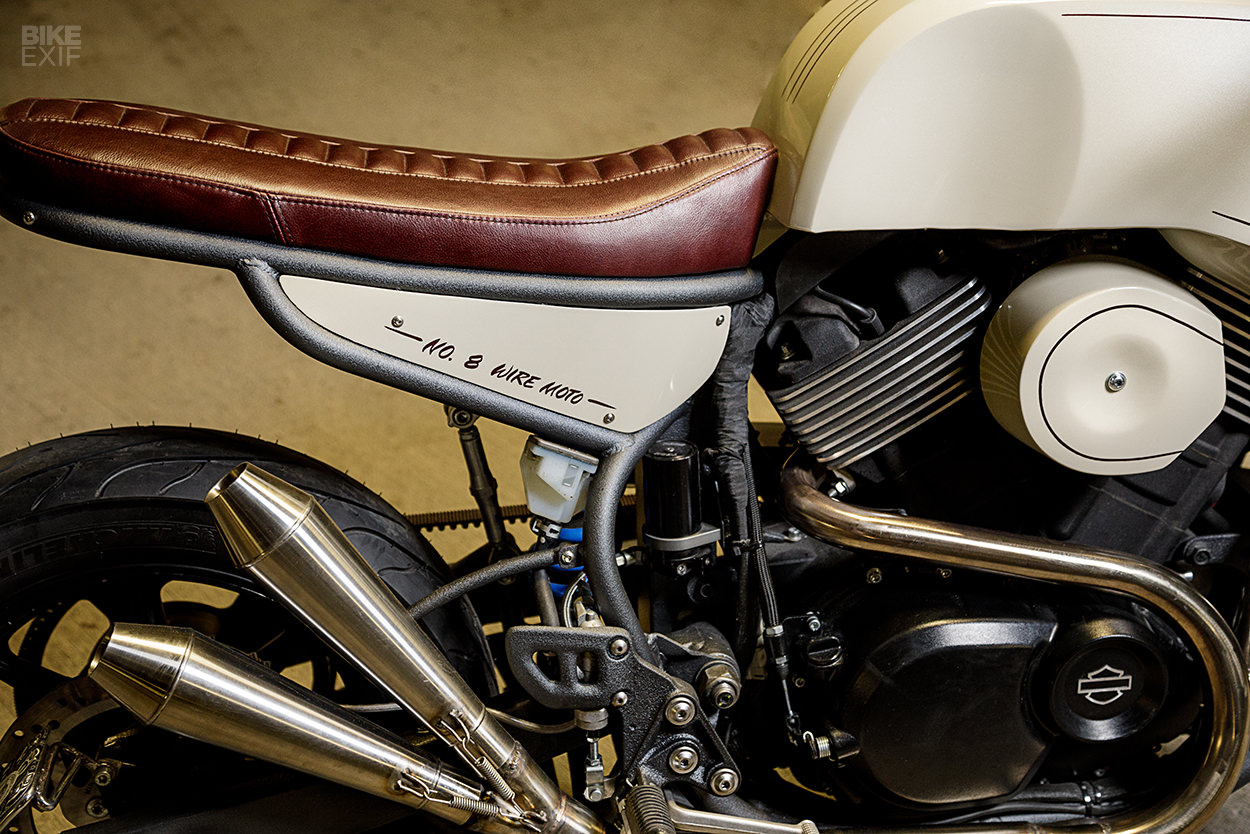

Other hand-made bits include the side panels, front fender, a rear splash guard, and a battery box. Colin also lopped off the entire subframe, then whipped up a new one using a manual tubing bender, a tubing notcher and a TIG welder, leaving a notch in the back for an LED tail light. New Church Moto handled the oxblood leather seat upholstery.

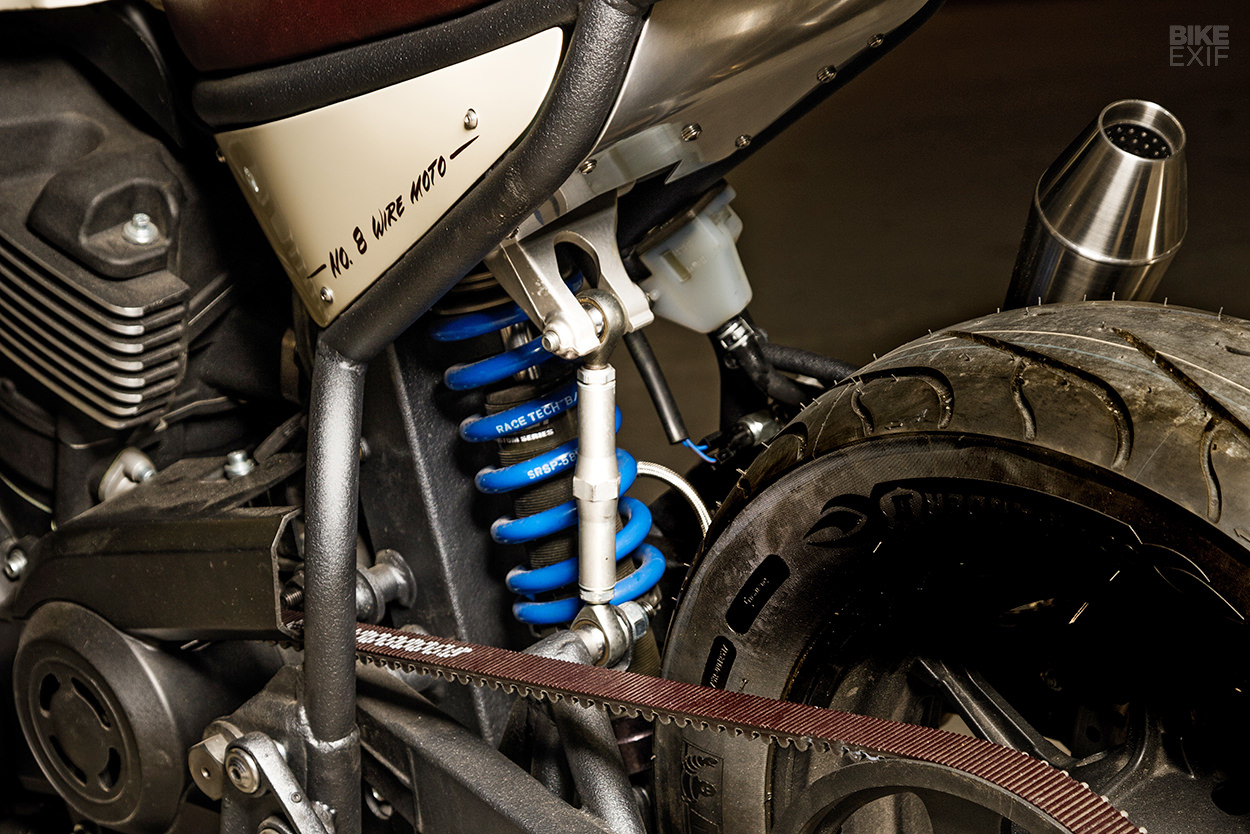

Colin’s next big challenge was the rear suspension. “To get the rear shock nice and tight in the rear end—and still have a bike that handled well—I needed a linkage to get an acceptable shock leverage ratio. I decided on the relatively common linkage from a Ducati 1098 and set to work designing the suspension based on that, and the visual lines I wanted to achieve with the subframe.”
Colin rebuilt the swing arm to fit, then turned to Racetech in California for the shock. They custom-built an external reservoir G3 unit.

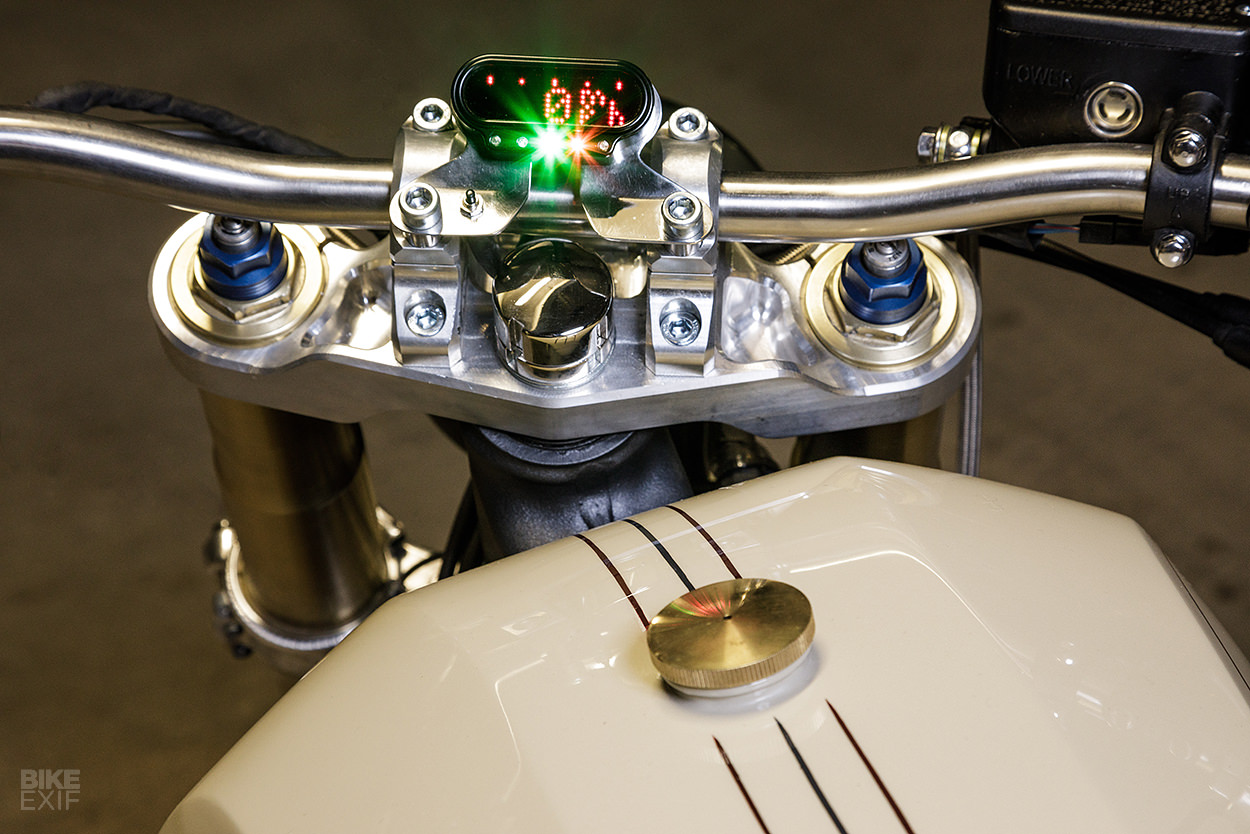

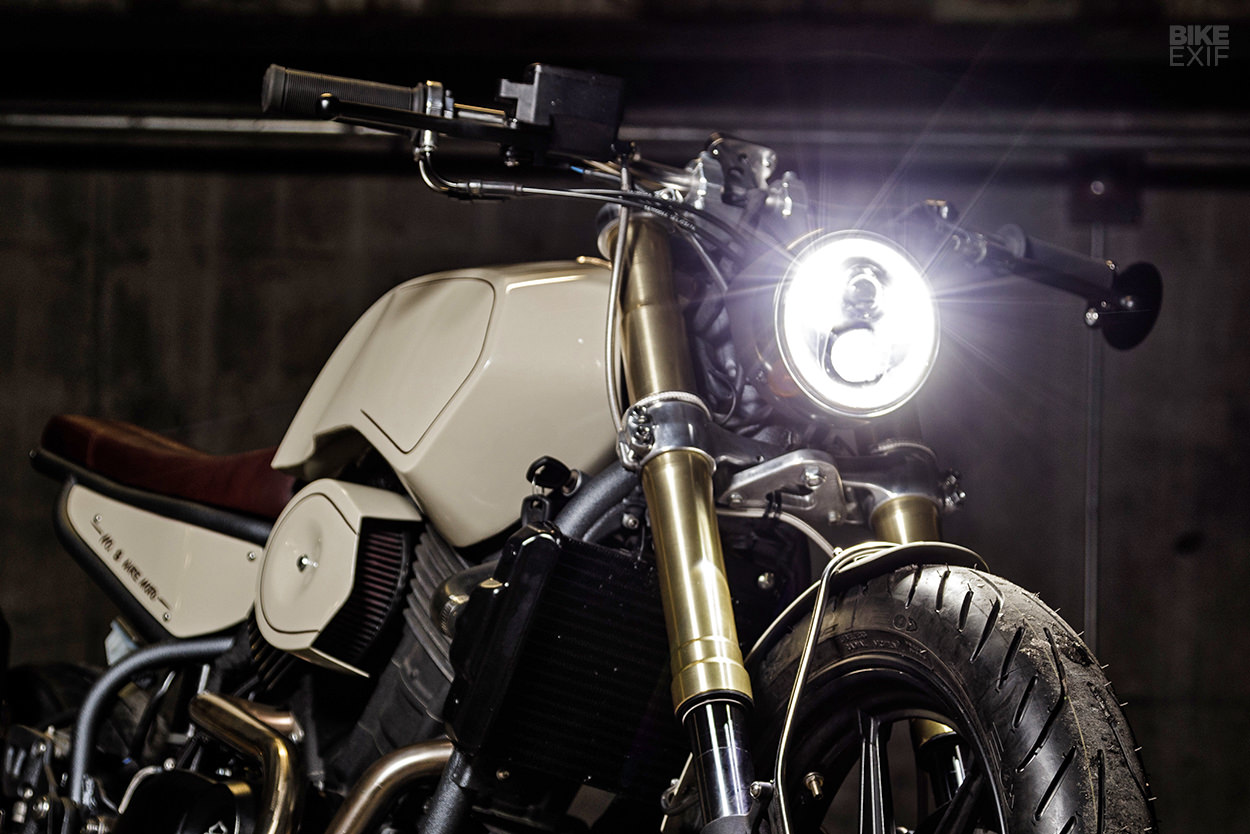

There’s some out-of-the-box thinking on the front end, too: “There aren’t any kits available for the Street,” says Colin. So near-neighbor Mike Manhardt of Acuity Design was roped, helping to design and CNC a custom upper triple clamp and steering stem. It now accommodates the front end from a 2005 Suzuki GSX-R750.
Those are the big mods, but there’s a ton of small stuff going on too. Colin’s handiwork can be found on the stainless steel fender braces, the license bracket, the hand-bent coolant lines, the aluminum headlight mount and even the custom-machined steering stem lock nuts.
Colin even hand-bent his own low-rise handlebars, then equipped them with micro-switches, Biltwell Inc. grips and bar-end mirrors. There’s a neat little Motogadget speedo, mounted in a hand-made stainless bracket. An LED headlight lights the way, with discreet LED turn signal strips mounted around the forks.
To squeeze a little more power out of the XG750 motor, Colin also fabricated a two-into-two, TIG-welded stainless steel exhaust system, finishing it with a pair of Cone Engineering mufflers. He then installed a Vance & Hines high flow air cleaner (with a custom-made cover) and a V&H ‘Fuelpak’ ECU. “The bike sounds great, runs great and absolutely rips,” he says.
“Part of the idea was also to have a finished product that was incredibly custom, but still serviceable by a H-D dealership mechanic. I managed to retain almost all of the stock wiring harness, all the stock relays, fuel pump and even the horn!”
All that was left was to apply a fresh coat of paint for the frame and bodywork, along with a little pin striping, which was handled by a couple of locals. This Street 750 now has a brawny new stance with performance to match, and it’s great example of the donor bike’s potential.
Colin’s client is reportedly chuffed, but he’ll have to wait for delivery. The bike’s going to Portland, Oregon for The One Show in a few weeks, before it heads to its new home.
